Antenna Prototyping Tools and Methods

The paper in PDF format is published in this link.

Antennas are fundamental components of wireless communication systems, enabling the transmission and reception of electromagnetic waves. The design and fabrication of antennas are critical for achieving optimal performance in terms of radiation pattern, gain, bandwidth, efficiency and etc. Over the years, various techniques have been developed for antenna prototyping and production, aiming to improve efficiency, reduce cost, and enable rapid development. This paper aims to review and analyze different antenna prototyping techniques, listing their benefits and explaining the re-usable Anten’it Prototyping Kits.

The Advantages of Prototyping During the Design Phase of Antennas

Prototyping antennas before production offers several advantages that contribute to the overall success of your design and product development process. Here are some key benefits of antenna prototyping:

Validation of Design Concepts: Antenna prototyping allows you to test and validate your antenna design concept in a real-world context. It confirms whether the theoretical design translates effectively into practical functionality.

Performance Verification: Through antenna prototyping, you can assess how well your antenna performs in terms of radiation patterns, gain, impedance matching, bandwidth, and other relevant parameters. This ensures that the antenna meets your desired specifications and requirements.

Identification of Design Flaws and Issues: Antenna prototyping often uncovers antenna design flaws, unexpected behaviors, and performance limitations that might not have been apparent in simulations or theoretical analyses. Early detection of issues leads to more effective problem-solving and optimization.

Optimization and Fine-Tuning: Antenna prototyping allows you to experiment with various design parameters, materials, and configurations to optimize the antenna's performance. You can refine the design iteratively to achieve the best possible results.

User Experience Assessment: If the antenna is part of a larger product or system, antenna prototyping enables you to gauge the user experience and usability. This feedback is valuable for making design adjustments that enhance overall satisfaction.

Material and Manufacturing Evaluation: During the antenna prototyping, you can evaluate the practicality of chosen materials and manufacturing methods. This helps identify any challenges related to fabrication, assembly, and scalability.

Risk Mitigation: Detecting and addressing design flaws early in the prototyping phase reduces the risk of expensive and time-consuming modifications during later stages of production.

Alignment with Regulatory Requirements: Antenna prototyping allows you to test the antenna's compliance with regulatory standards and requirements, ensuring that the final product will meet necessary certifications.

Communication and Collaboration: Physical prototypes provide tangible representations of the design that can be shared among team members, stakeholders, and investors. This facilitates better communication and collaboration.

Market Testing and Feedback: Antenna prototypes can be used to gather feedback from potential users or customers. This helps you understand how the product will be received in the market and whether any adjustments are needed.

Time and Cost Savings: Addressing design flaws and performance issues during the antenna prototyping stage is more cost-effective and time-efficient than making extensive changes after production has begun.

Confidence in Design Choices: Successfully validated antenna prototypes provide confidence that your design choices are sound and that the final product will perform as intended.

Educational and Training Purposes: Antenna prototyping allows students, engineers, and designers to gain hands-on experience and practical insights into antenna design, testing, and optimization.

In essence, antenna prototyping is a critical step that bridges the gap between theoretical design and full-scale production. It ensures that your antenna design not only meets technical specifications but also functions reliably in real-world scenarios, leading to better products and higher customer satisfaction.

Antenna Prototyping Methods:

Antenna prototyping allows you to create physical models of your antenna design to test its performance and validate its functionality. It generally follows the electromagnetic simulation step of antenna design. Here are some methods commonly used for antenna prototyping:

Hand-Built Prototypes: For simple antenna designs, you can manually construct antenna prototypes using basic materials such as wires, rods, and metal sheets. This approach is quick and suitable for initial testing and concept validation.

Rapid Prototyping (3D Printing): 3D printing technology allows you to create intricate and complex antenna structures with high precision. This method is particularly useful for prototyping small-scale and customized antenna designs. The problem with 3D printing is the quality in the metalization of the plastics and 3D printing of the dielectric materials. 3D printing of metals is still expensive compared to other methods.

Circuit (PCB) Prototyping: For antenna designs that involve integrated circuits, you can create circuit prototypes using breadboards or custom PCBs. This helps validate the electronic components and their interactions.

Wire Bending and Shaping: For wire antennas like dipoles or loop antennas, you can manually bend and shape wires to match the desired design. This method is cost-effective and straightforward for creating simple wire-based prototypes.

Metal Machining: For larger and more complex designs, metal machining techniques can be employed to create precise prototypes.

Hybrid Prototyping: Some antennas may require a combination of methods. For instance, you might 3D print a structural base and then manually attach conductive elements to create a functional prototype.

Modifying Existing Antennas: If you're working on variations of existing antenna designs, you can modify commercial antennas or repurpose components to create prototypes for testing.

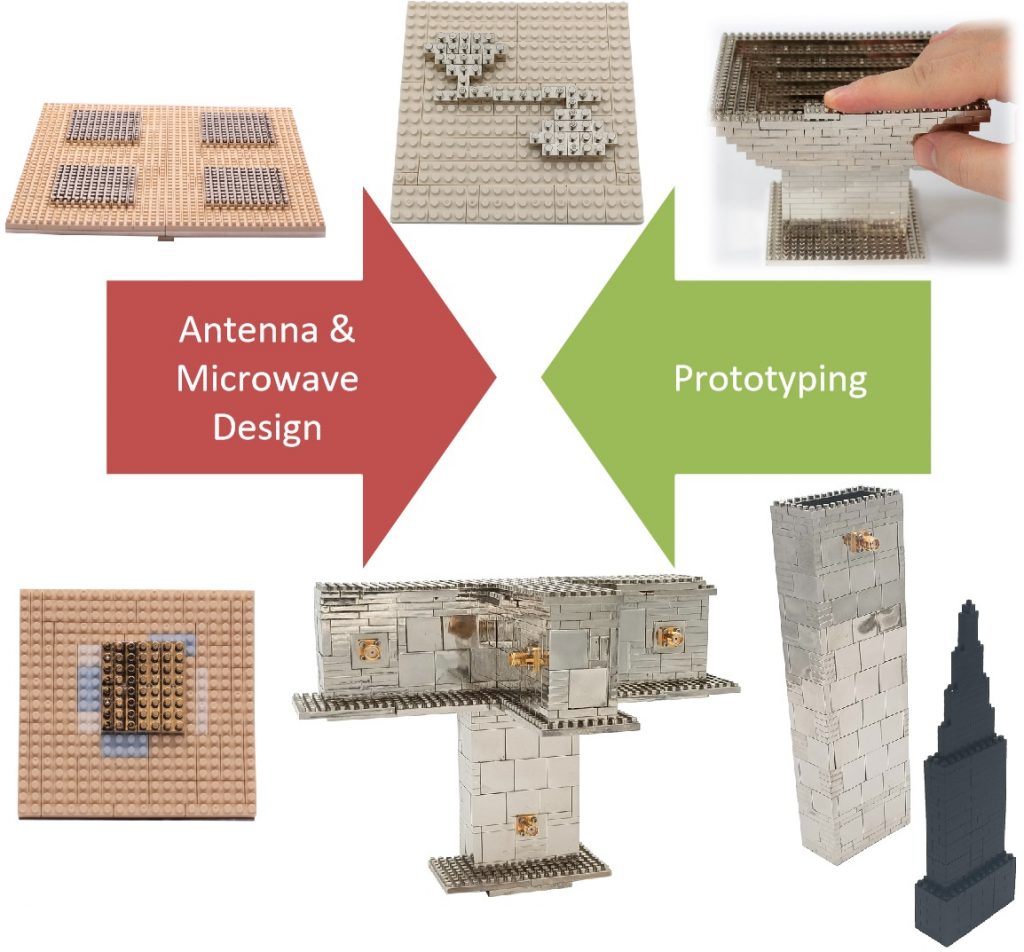

Anten’it Antenna Design and Prototyping Kit: Different from other prototyping techniques, Anten’it Antenna Design and Prototyping Kit uses re-usable blocks which makes the iteration easy. The detailed information about Anten’it kit is explained in the next section. Anten’it Library Software is a part of the kit which makes it easy to use.

When selecting a prototyping method, consider factors such as the complexity of your design, available materials, required accuracy, and the resources at your disposal. Additionally, it's important to ensure that the chosen prototyping method accurately represents the key characteristics of your design so that testing and validation results are meaningful and applicable to the final product.

Anten’it Antenna Design and Prototyping Kit:

Anten'it kits have the ability to prototype any antenna or microwave component using reusable blocks. Electromagnetic simulation tools work by dividing antennas and microwave structures into small structures called "mesh cells" and solving Maxwell's equations or derivatives within these structures. According to the numerical method used, "mesh cell" shapes change. The shapes of the antenna blocks are in the form of bricks and are most similar to the rectangular prism-shaped "mesh cells" in the FDTD (Finite Difference Time Domain) method.  The FDTD method gives accurate results when the wavelength of the structure to be simulated is divided into mesh cells of one tenth or smaller. For example, when a horn antenna is simulated, a smooth horn antenna is drawn in the simulation program interface, but the program first divides this structure into parts of one tenth of the wavelength or smaller and then solves Maxwell's equations in each of them and gives the results. These results are the results of the structure obtained with the rectangular prisms. Based on the antenna or microwave design made with these results, the antenna is prototyped and manufactured.

As an alternative to the method where a smooth surface is drawn, the result of the structure consisting of rectangular prism-shaped mesh cells is obtained and then the antenna or microwave structure consisting of smooth surfaces is produced, Anten'it offers the method where prototyping is done with rectangular prism-shaped bricks like mesh cells. The results are the same as in the simulation tools and the realized smooth structures.

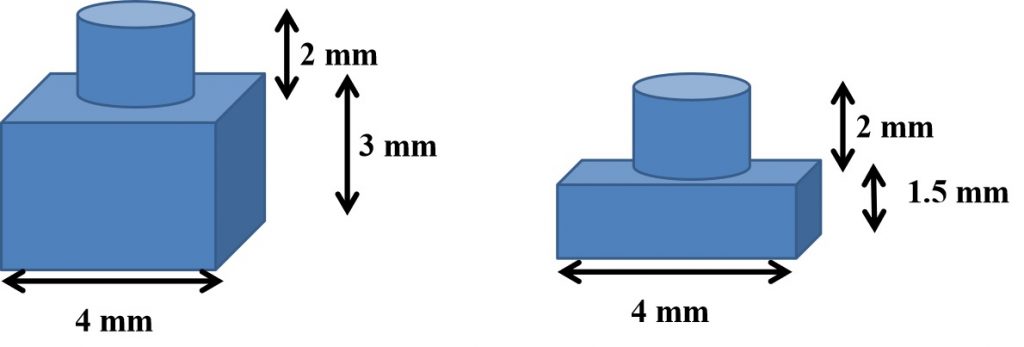

The most important feature of the structures in the form of bricks is that they can be easily installed and changed by hand and can be dismantled when the work is finished. Antenna'it Antenna Design and Prototyping Kit is the only kit in the world consisting of reusable parts for antenna prototyping. Similarly, Anten'it Microwave Design and Prototyping Kit, where microstrip and waveguide microwave components can be easily created, is the only kit consisting of reusable parts for prototyping microwave component design.
